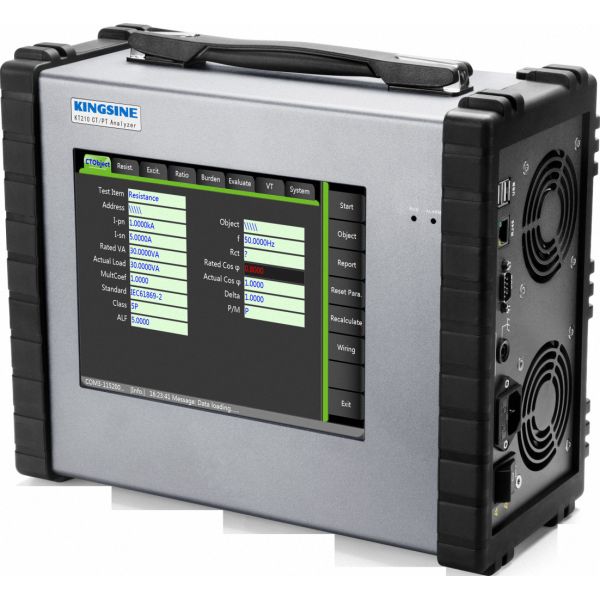

Software Based Tool Current Transformer Analyzer

Name: Software Based Tool Current Transformer Analyzer
Brand: KINGSINE
Price: 1 USD

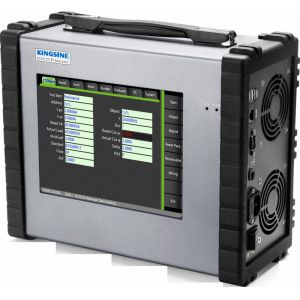

Quality Software Based Tool Current Transformer Analyzer for sale

Brand Name : KINGSINE

Model Number : KT210

Certification : ISO9001,CE

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T in advance ,L/C

Supply Ability : 50 sets/ month

Delivery Time : 15 working days

Contact Now

Auto Demagnetizes

●	Software-based tool to determine the residual magnetism in current transformers
●	Analysis of the remanence condition before putting into operation the CT to assure proper function
●	Simplifies power grid failure analysis after unwanted operation of protective relays
●	Demagnetizes the CT core after measurement

PC Control Available

●	Full access to all functions of the KT210 via a PC using the RJ45 interface
●	Optimizes the integration into automated testing procedures in production lines
●	Data export into Word
●	Customizable testing and reports

Data Handling and Reporting

●	Test reports can be saved on the local host and transferred to a PC
●	Data and protocols can be shown on a PC via the Word file loader program

"Guessing" Nameplates(Reference for unknown CT)

●	Determination of unknown CT data
●	Older CTs can be classified and put into service without contacting the manufacturer
●	Determinable parameters include:
	CT type
	Class
	Ratio
	Knee point
	Power Factor
	Nominal and operating burden
	Secondary winding resistance

Technical Features

●	Excellent noise immunity to disturbances from energized power lines close to the measurement
●	CT ratio and phase measurement with consideration of nominal and connected secondary burden; CT ratio up to 10000:1
●	Knee-point voltage from 1 V up to 30 kV can be Measured
●	Currents from 1% up to 400 % of the rated value
●	Different burdens (full, ½, ¼, ⅛ burden)
●	Determination of ALF/ALFi and FS/FSi, Ts, and composite error for nominal and connected burden
●	CT winding resistance measurement
●	CT excitation curve (unsaturated and saturated)
●	Saturation characteristic recording
●	Direct comparison of excitation curve to a reference curve
●	CT phase and polarity check
●	Secondary burden measurement
●	Automatic demagnetization of the CT after the test
●	Small and lightweight (< 8 kg)
●	Short testing time due to fully automatic testing
●	High level of safety using patented variable frequency method (max. 120 V)
●	"Nameplate guesser" function for CTs with unknown data
●	PC control interface
●	QuickTest: Manual testing interface
●	Color display readable in bright sunlight
●	Simulation of measured data with different burdens and currents
●	Easily adaptable reports (customizable)
●	Knee-point voltage from 1 V up to 30 kV can be Measured
●	Automatic assessment according to IEC 60044-1, IEC 60044-6, IEC61869-2, ANSI30/45
●	Automatic assessment for accuracy class > 0.1
●	Measurement of transient behavior of TPS, TPX, TPY and TPZ type CTs
●	PT ratio, polarity and excitation curve according to IEC60044-2
